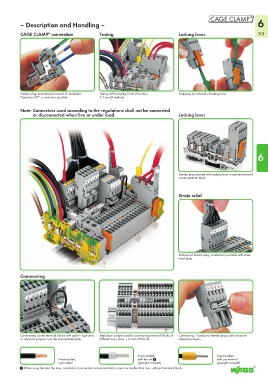

– Description and Handling – 6
CAGE CLAMP connection Testing Locking lever 301
®

Female plug: termination/removal of conductor. Testing with test plug 2 mm Ø (red) or Snapping in/removal of locking lever.
Operation 90° to wire also possible. 2.3 mm Ø (yellow).

Note: Connectors used according to the regulations shall not be connected
or disconnected when live or under load. Locking lever

6

Female plug secured with locking lever in external area of
carrier terminal block.

Strain relief

Removal of female plug, conductors provided with strain
relief plate.

Commoning

Commoning carrier terminal blocks with push-in type wire, Step-down jumper used for commoning terminal blocks of Commoning 1-conductor female plugs with miniature
or adjacent jumpers over the intermediate plate. different sizes (max. 10 mm²/AWG 8). adjacent jumpers.

fine-stranded, fine-stranded,
fine-stranded, with ferrule 1 with pin terminal
tip-bonded (gastight crimped) (gastight crimped)
1 When using ferrules, the max. conductor cross section accommodated is one size smaller than max. rating of terminal block.
