" 6

303

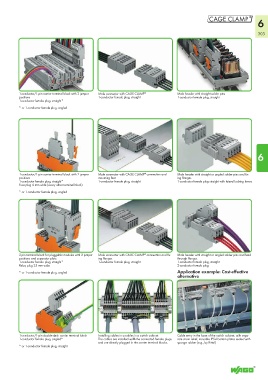

1-conductor/1-pin carrier terminal block with 3 jumper Male connector with CAGE CLAMP Male header with straight solder pins
®
positions 1-conductor female plug, straight 1-conductor female plug, straight
1-conductor female plug, straight*

* or 1-conductor female plug, angled

6

®
1-conductor/1-pin carrier terminal block with 2 jumper Male connector with CAGE CLAMP connection and Male header with straight or angled solder pins and fix-
positions mounting feet ing flanges
1-conductor female plug, straight* 1-conductor female plug, straight 1-conductor female plug straight with lateral locking levers
Fuse plug 6 mm wide (every other terminal block)

* or 1-conductor female plug, angled

®
2-pin terminal block for pluggable modules with 2 jumper Male connector with CAGE CLAMP connection and fix- Male header with straight or angled solder pins and feed-
positions and separator plate ing flanges through flanges
1-conductor female plug, straight* 1-conductor female plug, straight 1-conductor female plug, straight
Relay plug 25 mm wide 2-conductor female plug

* or 1-conductor female plug, angled Application example: Cost-effective
alternative

1-conductor/1-pin double-deck carrier terminal block Installing cables in a cables in a switch cabinet. Cable entry in the base of the switch cabinet, with sepa-
1-conductor female plug, angled* The cables are installed with the connected female plugs rate strain relief, movable IP54 bottom plates sealed with
and are directly plugged in the carrier terminal blocks. sponge rubber (e.g., by Rittal)
* or 1-conductor female plug, straight
