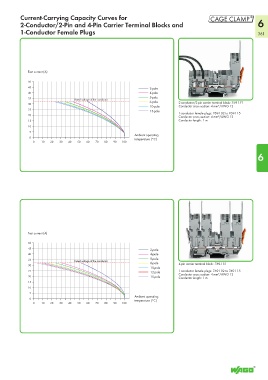

Current-Carrying Capacity Curves for
2-Conductor/2-Pin and 4-Pin Carrier Terminal Blocks and 6
1-Conductor Female Plugs 361
Test current (A)
50
45 2-pole
40 4-pole
35 Rated voltage of the conductor 5-pole
30 6-pole 2-conductor/2-pin carrier terminal block: 769-171
10-pole Conductor cross section: 4 mm²/AWG 12
25 15-pole
20 1-conductor female plugs: 769-102 to 769-115
Conductor cross section: 4 mm²/AWG 12
15 Conductor length: 1 m
10
5
Ambient operating
0 temperature (°C)
0 10 20 30 40 50 60 70 80 90 100
6
Test current (A)
50
45 2-pole
40 4-pole
35 Rated voltage of the conductor 5-pole
30 6-pole 4-pin carrier terminal block: 769-151
10-pole
25 12-pole 1-conductor female plugs: 769-102 to 769-115
20 15-pole Conductor cross section: 4 mm²/AWG 12
Conductor length: 1 m
15
10
5
Ambient operating
0 temperature (°C)
0 10 20 30 40 50 60 70 80 90 100
