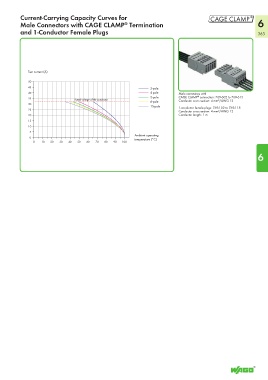

Current-Carrying Capacity Curves for
Male Connectors with CAGE CLAMP Termination 6
®
and 1-Conductor Female Plugs 363
Test current (A)
50
45 2-pole
40 4-pole Male connectors with
®
35 Rated voltage of the conductor 5-pole CAGE CLAMP connection: 769-602 to 769-615
Conductor cross section: 4 mm²/AWG 12
30 6-pole
15-pole
25 1-conductor female plugs: 769-102 to 769-115
Conductor cross section: 4 mm²/AWG 12
20 Conductor length: 1 m
15
10
5
Ambient operating
0 temperature (°C)
0 10 20 30 40 50 60 70 80 90 100
