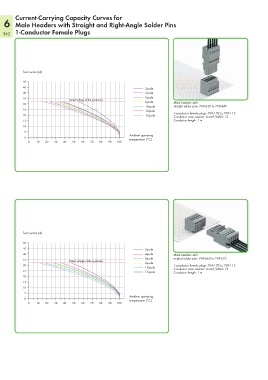

Current-Carrying Capacity Curves for
6 Male Headers with Straight and Right-Angle Solder Pins
362 1-Conductor Female Plugs
Test current (A)
50
45 2-pole
40 4-pole
35 Rated voltage of the conductor 5-pole
30 6-pole Male headers with
10-pole straight solder pins: 769-632 to 769-645
25 12-pole
20 15-pole 1-conductor female plugs: 769-102 to 769-115
Conductor cross section: 4 mm²/AWG 12
15 Conductor length: 1 m
10
5
Ambient operating
0 temperature (°C)
0 10 20 30 40 50 60 70 80 90 100
Test current (A)
50
45 2-pole
40 4-pole Male headers with
35 Rated voltage of the conductor 5-pole angled solder pins: 769-662 to 769-675
30 6-pole 1-conductor female plugs: 769-102 to 769-115
10-pole
25 15-pole Conductor cross section: 4 mm²/AWG 12
Conductor length: 1 m
20
15
10
5
Ambient operating
0 temperature (°C)
0 10 20 30 40 50 60 70 80 90 100
