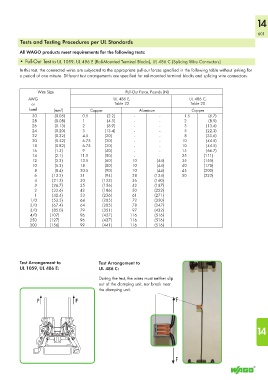

Tests and Testing Procedures per UL Standards

All WAGO products meet requirements for the following tests:
• Pull-Out Test to UL 1059, UL 486 E (Rail-Mounted Terminal Blocks), UL 486 C (Splicing Wire Connectors)
In this test, the connected wires are subjected to the appropriate pull-out forces specified in the following table without jerking for
a period of one minute. Different test arrangements are specified for rail-mounted terminal blocks and splicing wire connectors.

Wire Size Pull-Out Force, Pounds (N)
AWG UL 486 E, UL 486 C,
or Table 22 Table 20
kcmil (mm ) Copper Aluminum Copper
2
30 (0.05) 0.5 (2.2) - - 1.5 (6.7)
28 (0.08) 1 (4.5) - - 2 (8.9)
26 (0.13) 2 (8.9) - - 3 (13.4)
24 (0.20) 3 (13.4) - - 5 (22.3)
22 (0.32) 4.5 (20) - - 8 (35.6)
20 (0.52) 6.75 (30) - - 10 (44.5)
18 (0.82) 6.75 (30) - - 10 (44.5)
16 (1.3) 9 (40) - - 15 (66.7)
14 (2.1) 11.5 (50) - - 25 (111)
12 (3.3) 13.5 (60) 10 (44) 35 (155)
10 (5.3) 18 (80) 10 (44) 40 (178)
8 (8.4) 20.5 (90) 10 (44) 45 (200)
6 (13.3) 21 (94) 28 (124) 50 (222)
4 (21.2) 30 (133) 36 (160)
3 (26.7) 35 (156) 42 (187)
2 (33.6) 42 (186) 50 (222)
1 (42.4) 53 (236) 61 (271)
1/0 (53.5) 64 (285) 72 (320)
2/0 (67.4) 64 (285) 78 (347)
3/0 (85.0) 79 (351) 97 (432)
4/0 (107) 96 (427) 116 (516)
250 (127) 96 (427) 116 (516)
300 (156) 99 (441) 116 (516)

Test Arrangement to Test Arrangement to
UL 1059, UL 486 E: UL 486 C:

During the test, the wires must neither slip
out of the clamping unit, nor break near
the clamping unit.

F F F

14

F
