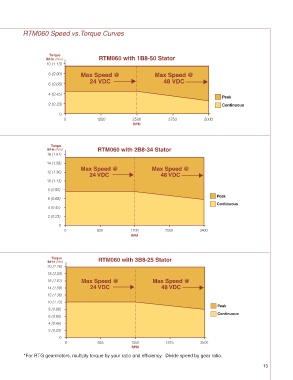

RTM060 Speed vs.Torque Curves

Ê 4ORQUE
LBF INÊ­ “® 24- WITH " 3TATOR
Ê£äÊ­£°£Î®

ÊnÊ­ä°™ä® -AX 3PEED -AX 3PEED
6$# 6$#
ÊÈÊ­ä°Èn®
Ê{Ê­ä°{x®
0EAK
ÊÓÊ­ä°Óή #ONTINUOUS
Ê ä
Ê Ê äÊ £ÓxäÊ ÓxääÊ ÎÇxäÊ xäää
Ê Ê Ê Ê 20-

Torque
lbf-in (Nm) RTM060 with 2B8-34 Stator
16 (1.81)
14 (1.58)
Max Speed @ Max Speed @
12 (1.36)
24 VDC 48 VDC
10 (1.13)
8 (0.90)
Peak
6 (0.68)
Continuous
4 (0.45)
2 (0.23)
0
0 850 1700 2550 3400
RPM

Torque
lbf-in (Nm) RTM060 with 3B8-25 Stator
20 (2.26)
18 (2.03)
16 (1.81) Max Speed @ Max Speed @
14 (1.58) 24 VDC 48 VDC
12 (1.36)
10 (1.13)
Peak
8 (0.90)
Continuous
6 (0.68)
4 (0.45)
2 (0.23)
0
0 625 1250 1875 2500
RPM
*For RTG gearmotors, multiply torque by your ratio and effi ciency. Divide speed by gear ratio.
