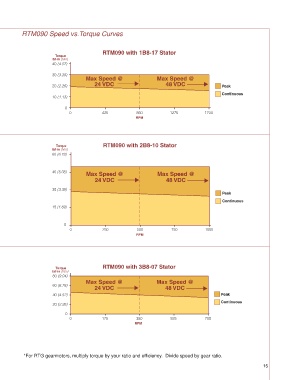

RTM090 Speed vs.Torque Curves

RTM090 with 1B8-17 Stator
Torque
lbf-in (Nm)
40 (4.52)

30 (3.39)
Max Speed @ Max Speed @
24 VDC 48 VDC
20 (2.26) Peak
Continuous
10 (1.13)

0
0 425 850 1275 1700
RPM

Torque RTM090 with 2B8-10 Stator
lbf-in (Nm)
60 (6.78)

45 (5.08)
Max Speed @ Max Speed @
24 VDC 48 VDC

30 (3.39)
Peak
Continuous
15 (1.69)

0
0 250 500 750 1000
RPM

Torque RTM090 with 3B8-07 Stator
lbf-in (Nm)
80 (9.04)
Max Speed @ Max Speed @
60 (6.78)
24 VDC 48 VDC
40 (4.52) Peak
Continuous
20 (2.26)
0
0 175 350 525 700
RPM

*For RTG gearmotors, multiply torque by your ratio and effi ciency. Divide speed by gear ratio.
