Page 14 - Exlar - TRITEX linear and rotary electric actuation

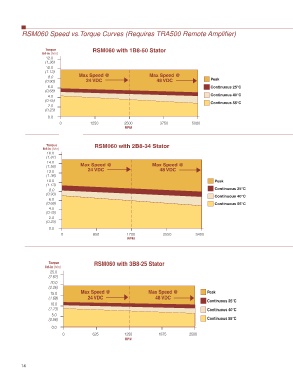

RSM060 Speed vs.Torque Curves (Requires TRA500 Remote Amplifi er)

Torque RSM060 with 1B8-50 Stator
lbf-in (Nm)
12.0
(1.36)
10.0
(1.13)
Max Speed @ Max Speed @
8.0
(0.90) 24 VDC 48 VDC Peak
6.0 Continuous 25°C
(0.68)
4.0 Continuous 40°C
(0.45)
Continuous 55°C
2.0
(0.23)
0.0
0 1250 2500 3750 5000
RPM

Torque RSM060 with 2B8-34 Stator
lbf-in (Nm)
16.0
(1.81)
14.0
(1.58) Max Speed @ Max Speed @
24 VDC 48 VDC
12.0
(1.36)
10.0 Peak
(1.13)
8.0 Continuous 25°C
(0.90)
Continuous 40°C
6.0
(0.68) Continuous 55°C
4.0
(0.45)
2.0
(0.23)
0.0
0 850 1700 2550 3400
RPM

Torque RSM060 with 3B8-25 Stator
lbf-in (Nm)
25.0
(2.82)
20.0
(2.26)
15.0 Max Speed @ Max Speed @ Peak
(1.69) 24 VDC 48 VDC
Continuous 25°C
10.0
(1.13) Continuous 40°C
5.0
(0.56) Continuous 55°C
0.0
0 625 1250 1875 2500
RPM

14
