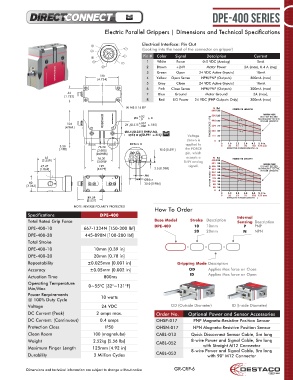

DPE-400 Series
M3
M100 M5 M3
M1
M5
Electric Parallel Grippers | Dimensions and Technical Specifications
Electrical Interface: Pin Out
3
2 (Looking into the head of the connector on gripper)
4
1 Pin # Color Signal Description Current
8
5 1 White Force 0-5 VDC (Analog) 5mA
7
6 2 Brown +24V Motor Power 2A (max), 0.4 A (avg)
3 Green Open 24 VDC Active (Inputs) 10mA
120
[4.724] 4 Yellow Open Sense NPN/PNP (Outputs) 300mA (max)
5 Gray Close 24 VDC Active (Inputs) 10mA
6 Pink Close Sense NPN/PNP (Outputs) 300mA (max)
44 7 Blue Ground Motor Ground 2A (max),
[1.732]
8 Red I/O Power 24 VDC (PNP Outputs Only) 300mA (max)
(4) M8 X 16 DP N lbf.
668150 FORCE VS LENGTH
WARNING!
DO NOT EXCEED
Ø8 +.03 8 556125 0.0 V MAXIMUM EFFECTIVE
-.0
126 2X [Ø .315 +.001 .315] 445100 FINGER LENGTHS

[4.961] -.000 FINGER FORCE - F/2 334 75 2.5 V
Ø8.4 [Ø .331] THRU ALL 223 50 5.0 V
M1
Ø15 X 8 [Ø .591 .315] M100 Voltage 111 25
D
shown is 0 0
DETAIL D applied to 0 1.0 2.0 3.0 4.0 5. 0 in.
3.50 76.20 0 25 51 76 102 127 mm
[.138] [3.000] 15.0 [0.591] the FORCE EFFECTIVE FINGER LENGTH - L
(DOWEL) pin, which
65 76.20 accepts a N lbf. FORCE VS LENGTH
[2.559] [3.000] 0-5V analog 445100
WARNING!
47.47 129 signal. 401 90 DO NOT EXCEED

356 80
[1.869] [5.079] 2.5 [0.098] 312 70 0.0 V MAXIMUM EFFECTIVE
FINGER LENGTHS
267 60
M6 FINGER FORCE - F/2 223 50 2.5 V
178 40
60 Ø10 h7 134 30 5.0 V
25.0 [0.984]

[2.362] 89 20
45 10
0 0
0 1.0 2.0 3.0 4.0 5. 0 in.
0 25 51 76 102 127 mm
89.59 EFFECTIVE FINGER LENGTH - L
[3.527]
NOTE: REVERSE POLARITY PROTECTED
How To Order
Specifications DPE-400 Internal
Total Rated Grip Force Base Model Stroke Description Sensing Description
DPE-400-10 667-1334N [150-300 lbf] DPE-400 10 10mm P PNP
20 20mm N NPN
DPE-400-20 445-890N [100-200 lbf]
Total Stroke
DPE-400-10 10mm [0.39 in] - - -
DPE-400-20 20mm [0.78 in]
Repeatability ±0.025mm [0.001 in] Gripping Mode Description
Accuracy ±0.05mm [0.002 in] OD Applies Max force on Close
Actuation Time 800ms ID Applies Max force on Open
Operating Temperature 0~55°C [32°~131°F]
Min/Max
Power Requirements
@ 100% Duty Cycle 10 watts
Voltage 24 VDC OD (Outside Diameter) ID (Inside Diameter)
DC Current (Peak) 2 amps max. Order No. Optional Power and Sensor Accessories
DC Current: (Continuous) 0.4 amps OHSP-017 PNP Magneto-Resistive Position Sensor
Protection Class IP50 OHSN-017 NPN Magneto-Resistive Position Sensor
Clean Room 100 (magnalube) CABL-013 Quick Disconnect Sensor Cable, 5m long
Weight 2.52kg [5.56 lbs] CABL-052 8-wire Power and Signal Cable, 5m long
with Straight M12 Connector
Maximum Finger Length 125mm [4.92 in] 8-wire Power and Signal Cable, 5m long
Durability 3 Million Cycles CABL-053 with 90° M12 Connector
Dimensions and technical information are subject to change without notice GR-CRP-6
