DPE-200-25 Series M1 M5 M3
M3
M5
M100

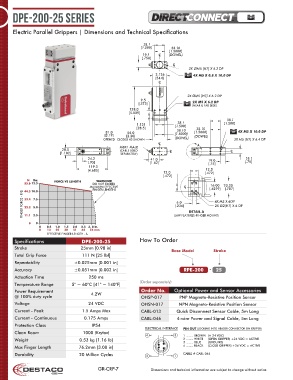

Electric Parallel Grippers | Dimensions and Technical Specifications
38.1
[1.500] 38.10
[1.5000]
19.1 C L (DOWEL)
[.750]
C L
2X ØM5 [H7] X 6.2 DP
2.126 M5 4X M5 X 0.8 X 10.0 DP
M5
[54.0]
C L
2X ØM5 [H7] X 6.2 DP
9.5
2X M5 X 6.2 DP
[.375] M5 (NEAR & FAR SIDE)
M5
128.0
[5.039]
38.1
38.1 [1.500]
1.121 [1.500]
[28.5] 38.10
M5
81.0 56.0 38.10 [1.5000] M5 4X M5 X 10.0 DP
[3.19] [2.20] [1.5000] (DOWEL)
OPENED CLOSED AS SHOWN (DOWEL) 2X M5 (H7) X 6.4 DP
C L
M8X1 MALE A
28.0 (CABLE SOLD C L C L
[1.102] SEPARATELY)
24.2 41.0 19.0 19.1
[.95] [1.62] [.75] [.75]
119.0
[4.685] 12.0
12.0 [.472]
[.472]
N lbs. FORCE VS LENGTH WARNING!
55.6 12.5 DO NOT EXCEED
MAXIMUM EFFECTIVE C L 16.00 20.00
FINGER LENGTHS [.6299] [.787]
44.5 10.0
FINGER FORCE - F/2 33.4 7.5 [.236] DETAIL A 4X M3 X 6DP
6.0
2X Ø2[H7] X 6 DP
22.2 5.0
11.1 2.5
0 0 (JAW FEATURES-FINGER MOUNT)
0 0.5 1.0 1.5 2.0 2.5 3. 0 in.
0 13 25 38 51 64 76 mm
EFFECTIVE FINGER LENGTH - L
Specifications DPE-200-25 How To Order
Stroke 25mm [0.98 in]
Base Model Stroke
Total Grip Force 111 N [25 lbf]
Repeatability ±0.025mm [0.001 in]
Accuracy ±0.051mm [0.002 in] RPE-200 - 25
Actuation Time 250 ms
(Order separately)
Temperature Range 5° ~ 60°C [41° ~ 140°F]
Power Requirement 4.2W Order No. Optional Power and Sensor Accessories
@ 100% duty cycle OHSP-017 PNP Magneto-Resistive Position Sensor
Voltage 24 VDC OHSN-017 NPN Magneto-Resistive Position Sensor
Current - Peak 1.5 Amps Max CABL-013 Quick Disconnect Sensor Cable, 5m Long
Current - Continuous 0.175 Amps CABL-046 4-wire Power and Signal Cable, 5m Long
Protection Class IP54
ELECTRICAL INTERFACE PIN OUT (LOOKING INTO HEADER CONNECTOR ON GRIPPER)
Clean Room 1000 (Krytox)
4 3 1 ........ BROWN (+ 24 VDC)
Weight 0.53 kg [1.16 lb] 2 ........ WHITE (OPEN GRIPPER) +24 VDC = ACTIVE
(GROUND)
3 ........ BLUE
Max Finger Length 76.2mm [3.00 in] 4 ........ BLACK (CLOSE GRIPPER) +24 VDC = ACTIVE
Durability 20 Million Cycles 2 1 CABLE # CABL-046
GR-CRP-7 Dimensions and technical information are subject to change without notice
