CT/DCT & CT-RE/DCT-RE
M1
M100 M5 M100M3M3 M5 M3
M3
M5
M1
M5

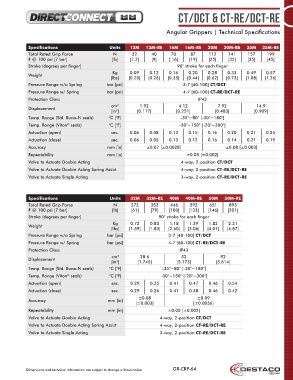

Angular Grippers | Technical Specifications
Specifications Units 12M 12M-RE 16M 16M-RE 20M 20M-RE 25M 25M-RE
Total Rated Grip Force N 32 40 70 87 112 141 157 199
F @ 100 psi [7 bar] [lb] [7.2] [9] [ 16] [19] [25] [32] [35] [45]
Stroke (degrees per finger) 90° stroke for each finger
Kg 0.09 0.12 0.16 0.20 0.28 0.33 0.49 0.57
Weight
[lbs] [0.20] [0.26] [0.35] [0.44] [0.62] [0.73] [1.08] [1.26]
Pressure Range w/o Spring bar [psi] 3-7 [40-100] CT/DCT
Pressure Range w/ Spring bar [psi] 4-7 [60-100] CT-RE/DCT-RE
Protection Class IP43
cm 1.92 4.12 7.92 14.9
3
Displacement
[in ] [0.117] [0.251] [0.483] [0.909]
3
Temp. Range (Std. Buna-N seals) °C [°F] -35°~80° [-30°~180°]
Temp. Range (Viton seals) °C [°F] -30°~150° [-20°~300°]
®
Actuation (open) sec. 0.06 0.08 0.13 0.15 0.16 0.20 0.21 0.25
Actuation (close) sec. 0.06 0.05 0.13 0.12 0.16 0.14 0.21 0.19
Accuracy mm [in] ±0.07 [±0.0028] ±0.08 [±0.003]
Repeatability mm [in] ±0.05 [±0.002]
Valve to Actuate Double Acting 4-way, 2-position CT/DCT
Valve to Actuate Double Acting Spring Assist 4-way, 2-position CT-RE/DCT-RE
Valve to Actuate Single Acting 3-way, 2-position CT-RE/DCT-RE
Specifications Units 32M 32M-RE 40M 40M-RE 50M 50M-RE
Total Rated Grip Force N 272 353 446 592 651 893
F @ 100 psi [7 bar] [lb] [61] [79] [100] [133] [146] [201]
Stroke (degrees per finger) 90° stroke for each finger
Kg 0.72 0.83 1.18 1.39 1.82 2.21
Weight
[lbs] [1.59] [1.83] [2.60] [3.06] [4.01] [4.87]
Pressure Range w/o Spring bar [psi] 3-7 [40-100] CT/DCT
Pressure Range w/ Spring bar [psi] 4-7 [60-100] CT-RE/DCT-RE
Protection Class IP43
cm 28.6 52 92
3
Displacement
[in ] [1.745] [3.173] [5.614]
3
Temp. Range (Std. Buna-N seals) °C [°F] -35°~80° [-30°~180°]
Temp. Range (Viton seals) °C [°F] -30°~150° [-20°~300°]
®
Actuation (open) sec. 0.29 0.35 0.41 0.47 0.46 0.54
Actuation (close) sec. 0.29 0.26 0.41 0.38 0.46 0.42
±0.08 ±0.09
Accuracy mm [in]
[±0.003] [±0.0036]
Repeatability mm [in] ±0.05 [±0.002]
Valve to Actuate Double Acting 4-way, 2-position CT/DCT
Valve to Actuate Double Acting Spring Assist 4-way, 2-position CT-RE/DCT-RE
Valve to Actuate Single Acting 3-way, 2-position CT-RE/DCT-RE
Dimensions and technical information are subject to change without notice GR-CRP-64
