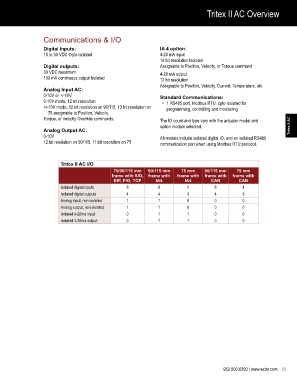

Tritex II AC Overview

Communications & I/O

Digital Inputs: IA 4 option:
10 to 30 VDC Opto-isolated 4-20 mA input
16 bit resolution Isolated
Digital outputs: Assignable to Position, Velocity, or Torque command
30 VDC maximum 4-20 mA output
100 mA continuous output Isolated 12 bit resolution
Assignable to Position, Velocity, Current, Temperature, etc
Analog Input AC:
0-10V or +/-10V Standard Communications:
0-10V mode, 12 bit resolution • 1 RS485 port, Modbus RTU, opto-isolated for
+/-10V mode, 12 bit resolution on 90/115, 13 bit resolution on programming, controlling and monitoring
75 assignable to Position, Velocity,
Torque, or Velocity Override commands. The IO count and type vary with the actuator model and
option module selected. Tritex II AC
Analog Output AC:
0-10V All models include isolated digital IO, and an isolated RS485
12 bit resolution on 90/115, 11 bit resolution on 75 communication port when using Modbus RTU protocol.

Tritex II AC I/O
75/90/115 mm 90/115 mm 75 mm 90/115 mm 75 mm
frame with SIO, frame with frame with frame with frame with
EIP, PIO, TCP IA4 IA4 CAN CAN
Isolated digital inputs 8 8 4 8 4
Isolated digital outputs 4 4 3 4 3
Analog input, non isolated 1 1 0 0 0
Analog output, non isolated 1 1 0 0 0
Isolated 4-20ma input 0 1 1 0 0
Isolated 4-20ma output 0 1 1 0 0
