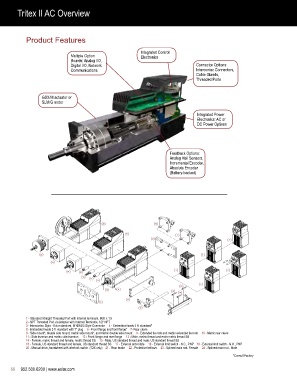

Tritex II AC Overview

Product Features

Integrated Control
Multiple Option Electronics
Boards: Analog I/O,
Digital I/O, Network Connector Options:
Communications Intercontec Connectors,
Cable Glands,
Threaded Ports

GSX/M actuator or
SLM/G motor

Integrated Power
Electronics: AC or
DC Power Options

Feedback Options:
Analog Hall Sensors,
Incremental Encoder,
Absolute Encoder
(Battery-backed)

20 10

21
7
12
5
22 3
23
1 4
24 16
15
14
9
2
18
13 8
18
19
11
6
17
1 - Standard Straight Threaded Port with Internal terminals, M20 x 1.5
2 - NPT Threaded Port via Adapter with Internal Terminals, 1/2” NPT
3 - Intercontec Style - Exlar standard, M16/M23 Style Connector 4 - Embedded leads 3 ft. standard*
5 - Embedded leads 3 ft. standard with “I” plug 6 - Front flange and front flange* 7- Rear clevis
8 - Side mount*, double side mount, metric side mount*, and metric double side mount 9 - Extended tie rods and metric extended tie rods 10 - Metric rear clevis
11 - Side trunnion and metric side trunnion 12 - Front flange and rear flange 13 - Male, metric thread and male metric thread SS
14 - Female, metric thread and female, metric thread SS 15 - Male, US standard thread and male, US standard thread SS
16 - Female, US standard thread and female, US standard thread SS 17 - External anti-rotate 18 - External limit switch - N.C., PNP 19 - External limit switch - N.O., PNP
20 - Manual drive, handwheel with interlock switch (T2X only) 21 - Rear brake 22 - Protective bellows 23 - Splined main rod- Female 24 - Splined main rod - Male
*Consult Factory
