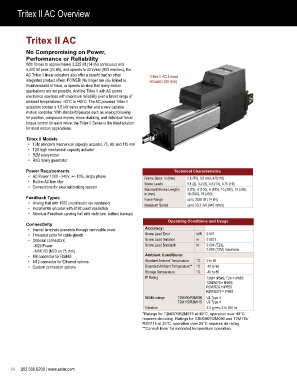

Tritex II AC Overview

Tritex II AC

No Compromising on Power,
Performance or Reliability
With forces to approximately 3,225 lbf (14 kN) continuous and
5,400 lbf peak (24 kN), and speeds to 33 in/sec (800 mm/sec), the
AC Tritex II linear actuators also offer a benefit that no other Tritex II AC Linear
integrated product offers: POWER! No longer are you limited to Actuator (90 mm)
trivial amounts of force, or speeds so slow that many motion
applications are not possible. And the Tritex II with AC power
electronics operates with maximum reliability over a broad range of
ambient temperatures: -40˚C to +65˚C. The AC powered Tritex II
actuators contain a 1.5 kW servo amplifier and a very capable
motion controller. With standard features such as analog following
for position, compound moves, move chaining, and individual force/
torque control for each move, the Tritex II Series is the ideal solution
for most motion applications.

Tritex II Models
• T2M standard mechanical capacity actuator, 75, 90, and 115 mm
• T2X high mechanical capacity actuator
• R2M rotary motor
• R2G rotary gearmotor

Power Requirements Technical Characteristics
• AC Power 100V - 240V, +/- 10%, single phase Frame Sizes in (mm) 2.9 (75), 3.5 (90), 4.5(115)
• Built-in AC line filter Screw Leads 0.1 (2), 0.2 (5), 0.5 (13), 0.75 (19)
• Connections for external braking resistor
Standard Stroke Lengths 3 (75), 4 (100), 6 (150), 10 (250), 12 (300),
in (mm) 14 (350), 18 (450)
Feedback Types Force Range up to 3225 lbf (14 kN)
• Analog Hall with 1000 count/motor rev resolution Maximum Speed up to 33.3 in/s (846 mm/s)
• Incremental encoder with 8192 count resolution
• Absolute Feedback (analog hall with multi-turn, battery backup)
Operating Conditions and Usage
Connectivity
• Inernal terminals acessible through removable cover Accuracy:
• Threaded ports for cable glands Screw Lead Error in/ft 0.001
• Optional connectors: Screw Lead Variation in 0.0012
–M23 Power Screw Lead Backlash in 0.004 (T2X),
– M16 I/O (M23 on 75 mm) 0.008 (T2M) maximum
• M8 connector for RS485 Ambient Conditions:
• M12 connector for Ethernet options Standard Ambient Temperature °C 0 to 65
• Custom connection options Extended Ambient Temperature** °C -40 to 65
Storage Temperature °C -40 to 85
IP Rating T2M = IP54S, T2X = IP65S
T2M/X075 = IP66S,
R2M/R2G = IP65S
R2M/G075 = IP66S
NEMA ratings T2M090/R2M090 UL Type 4
T2M115/R2M115 UL Type 4
Vibration 2.5 g rms, 5 to 500 hz
* Ratings for T2M075/R2M075 at 40°C, operation over 40°C
requires de-rating. Ratings for T2M090/R2M090 and T2M115/
R2M115 at 25°C, operation over 25°C requires de-rating.
**Consult Exlar for extended temperature operation.
