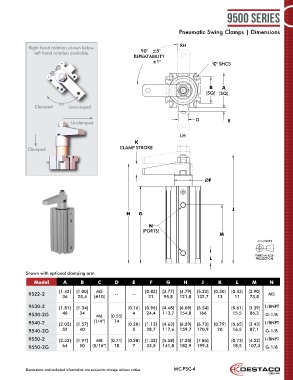

9500 Series

Pneumatic Swing Clamps | Dimensions

RH
Right hand rotation shown below,
left hand rotation available. 90° ±5°
REPEATABILITY
±1° "C" SHCS

B A
(SQ) (SQ)
90°
Clamped Unclamped

D E
Unclamped

LH
K
Clamped CLAMP STROKE

ØF

J
H G

N
(PORTS)
M
mm [INCH] mm [INCH]

THIRD ANGLE FIRST ANGLE
L PROJECTION PROJECTION

Shown with optional clamping arm.

Model A B C D E F G H J K L M N
[1.42] [1.00] M5 [0.82] [3.77] [4.79] [5.22] [0.50] [0.43] [2.90]
9522-2 -- -- M5
36 25,4 (#10) 21 95,8 121,8 132,7 13 11 73,8
9530-2 [1.81] [1.34] [0.16] [0.96] [4.48] [6.09] [6.54] [0.61] [3.39] 1/8NPT
9530-2G 46 34 M6 [0.55] 4 24,4 113,7 154,8 166 15,5 86,2 G-1/8
9540-2 [2.05] [1.57] (1/4”) 14 [0.20] [1.13] [4.63] [6.29] [6.73] [0.79] [0.65] [3.43] 1/8NPT
9540-2G 52 40 5 28,7 117,6 159,7 170,9 20 16,5 87,1 G-1/8

9550-2 [2.52] [1.97] M8 [0.71] [0.28] [1.32] [5.58] [7.20] [7.85] [0.73] [4.22] 1/8NPT
9550-2G 64 50 (5/16”) 18 7 33,5 141,8 182,9 199,3 18,5 107,3 G-1/8
