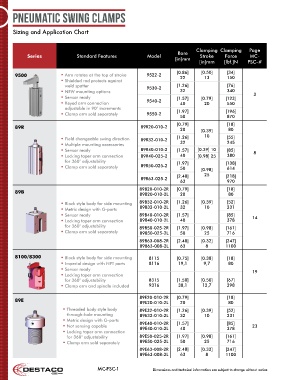

Page 210 - Destaco - Clamping Technology

pneumatic swing clamps

Sizing and Application Chart

Clamping Clamping Page
Bore
Series Standard Features Model Stroke Force MC-
[in]mm
[in]mm [lbf.]N PSC-#
[0.86] [0.50] [34]
9500 • Arm rotates at the top of stroke 9522-2 22 13 150
• Shielded rod protects against
weld spatter 9530-2 [1.26] [76]
• NEW mounting options 32 340 3
• Sensor ready [1.57] [0.79] [123]
• Keyed arm connection 9540-2 40 20 550
adjustable in 90° increments
• Clamp arm sold separately 9550-2 [1.97] [196]
50 870
[0.79] [18]
89R 89R20-010-2 20 [0.39] 80

• Field changeable swing direction 89R32-010-2 [1.26] 10 [55]
• Multiple mounting accessories 32 245
• Sensor ready 89R40-010-2 [1.57] [0.39] 10 [85] 8
• Locking taper arm connection 89R40-025-2 40 [0.98] 25 380
for 360° adjustability [1.97] [138]
• Clamp arm sold separately 89R50-025-2 50 [0.98] 614
[2.48] 25 [218]
89R63-025-2
63 970
89B20-010-2R [0.79] [18]
89B 89B20-010-2L 20 80

• Block style body for side mounting 89B32-010-2R [1.26] [0.39] [52]
• Metric design with G-ports 89B32-010-2L 32 10 231
• Sensor ready 89B40-010-2R [1.57] [85] 14
• Locking taper arm connection 89B40-010-2L 40 378
for 360° adjustability 89B50-025-2R [1.97] [0.98] [161]
• Clamp arm sold separately 89B50-025-2L 50 25 716
89B63-008-2R [2.48] [0.32] [247]
89B63-008-2L 63 8 1100

8100/8300 • Block style body for side mounting 8115 [0.75] [0.38] [18]
• Imperial design with NPT ports 8116 19,1 9,7 80
• Sensor ready 19
• Locking taper arm connection
for 360° adjustability 8315 [1.50] [0.50] [67]
• Clamp arm and spindle included 9316 38,1 12,7 298

89E20-010-2R [0.79] [18]
89E
89E20-010-2L 20 80
• Threaded body style body 89E32-010-2R [1.26] [0.39] [52]
through-hole mounting 89E32-010-2L 32 10 231
• Metric design with G-ports 89E40-010-2R [1.57] [85]
• Not sensing capable 89E40-010-2L 40 378 23
• Locking taper arm connection
for 360° adjustability 89E50-025-2R [1.97] [0.98] [161]
• Clamp arm sold separately 89E50-025-2L 50 25 716
89E63-008-2R [2.48] [0.32] [247]
89E63-008-2L 63 8 1100

MC-PSC-1 Dimensions and technical information are subject to change without notice
