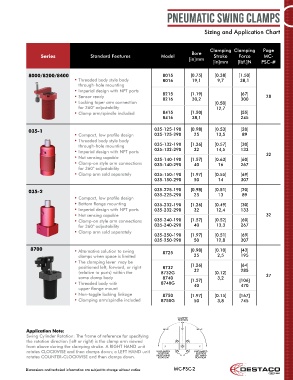

Page 211 - Destaco - Clamping Technology

pneumatic swing clamps

Sizing and Application Chart

Clamping Clamping Page
Bore
Series Standard Features Model Stroke Force MC-
[in]mm
[in]mm [lbf.]N PSC-#

8000/8200/8400 8015 [0.75] [0.38] [1.50]
• Threaded body style body 8016 19,1 9,7 38,1
through-hole mounting
• Imperial design with NPT ports 8215 [1.19] [67]
• Sensor ready 8216 30,2 300 28
• Locking taper arm connection [0.50]
for 360° adjustability 12,7
• Clamp arm/spindle included 8415 [1.50] [55]
8416 38,1 245

035-1 035-125-190 [0.98] [0.53] [20]
• Compact, low profile design 035-125-290 25 13,5 89
• Threaded body style body
through-hole mounting 035-132-190 [1.26] [0.57] [30]
• Imperial design with NPT ports 035-132-290 32 14,5 133 32
• Not sensing capable 035-140-190 [1.57] [0.63] [60]
• Clamp-on style arm connections 035-140-290 40 16 267
for 360° adjustability
• Clamp arm sold separately 035-150-190 [1.97] [0.55] [69]
035-150-290 50 14 307

035-2 035-225-190 [0.98] [0.51] [20]
035-225-290
89
13
25
• Compact, low profile design
• Bottom flange mounting 035-232-190 [1.26] [0.49] [30]
• Imperial design with NPT ports 035-232-290 32 12,4 133
• Not sensing capable 32
• Clamp-on style arm connections 035-240-190 [1.57] [0.52] [60]
for 360° adjustability 035-240-290 40 13,3 267
• Clamp arm sold separately
035-250-190 [1.97] [0.51] [69]
035-250-290 50 12,8 307
8700
• Alternative solution to swing 8725 [0.98] [0.10] [43]
25
clamps when space is limited 89R40_010_2 2,5 195
• The clamping lever may be
positioned left, forward, or right 8732 [1.26] [64]
(relative to ports) within the 8732G 32 [0.12] 285
same clamp body 8740 3,2 37
• Threaded body with 8740G [1.57] [106]
470
40
upper flange mount
• Non-toggle locking linkage 8750 [1.97] [0.15] [167]
• Clamping arm/spindle included 8750G 50 3,8 745

CLAMPED
POSITION

Application Note: 90°±5° 90°±5°
Swing Cylinder Rotation: The frame of reference for specifying
the rotation direction (left or right) is the clamp arm viewed
from above during the clamping stroke. A RIGHT HAND unit
rotates CLOCKWISE and then clamps down; a LEFT HAND unit UNCLAMPED UNCLAMPED
POSITION
POSITION
rotates COUNTER-CLOCKWISE and then clamps down. RIGHT HAND LEFT HAND
ROTATION
ROTATION
Dimensions and technical information are subject to change without notice MC-PSC-2
