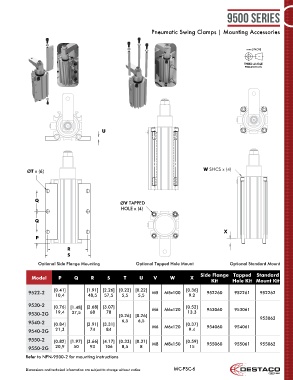

P. 215
9500 series
Pneumatic Swing Clamps | Mounting Accessories
mm [INCH] mm [INCH]
THIRD ANGLE FIRST ANGLE
PROJECTION PROJECTION
U
ØT x (6) W SHCS x (4)
Q
ØV TAPPED
HOLE x (4)
Q
X
P
R
S
Optional Side Flange Mounting Optional Tapped Hole Mount Optional Standard Mount
Side Flange Tapped Standard
Model P Q R S T U V W X
Kit Hole Kit Mount Kit
[0.41] [1.91] [2.26] [0.22] [0.22] [0.36]
9522-2 M5 M5x100 952260 952261 952262
10,4 48,5 57,5 5,5 5,5 9.2
9530-2 [0.76] [1.48] [2.68] [3.07] M6 M6x120 [0.52] 953060 953061
9530-2G 19,4 37,5 68 78 [0.26] [0.26] 13.3 953062
9540-2 [0.84] [2.91] [3.31] 6,5 6,5 M6 M6x120 [0.37] 954060 954061
9540-2G 21,3 74 84 9.4
9550-2 [0.82] [1.97] [3.66] [4.17] [0.33] [0.31] M8 M8x150 [0.59] 955060 955061 955062
9550-2G 20,9 50 93 106 8,5 8 15
Refer to NPN-9500-2 for mounting instructions
Dimensions and technical information are subject to change without notice MC-PSC-6
