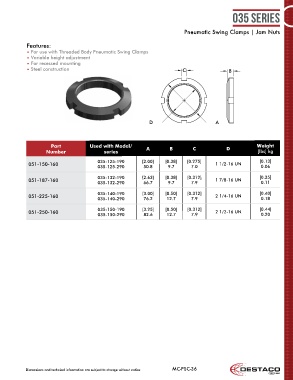

Page 245 - Destaco - Clamping Technology

035 series

Pneumatic Swing Clamps | Jam Nuts

Features:
• For use with Threaded Body Pneumatic Swing Clamps
• Variable height adjustment
• For recessed mounting
• Steel construction C B

D A

Part Used with Model/ C D Weight
Number series A B [lbs] kg
035-125-190 [2.00] [0.38] [0.275] [0.13]
051-150-160 035-125-290 50.8 9.7 7.0 1 1/2-16 UN 0.06

035-132-190 [2.63] [0.38] [0.312] [0.25]
051-187-160 1 7/8-16 UN
035-132-290 66.7 9.7 7.9 0.11
035-140-190 [3.00] [0.50] [0.312] [0.40]
051-225-160 2 1/4-16 UN
035-140-290 76.2 12.7 7.9 0.18
035-150-190 [3.25] [0.50] [0.312] [0.44]
051-250-160 035-150-290 82.6 12.7 7.9 2 1/2-16 UN 0.20

Dimensions and technical information are subject to change without notice MC-PSC-36
