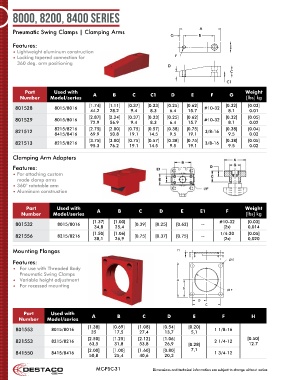

Page 240 - Destaco - Clamping Technology

8000, 8200, 8400 series

Pneumatic Swing Clamps | Clamping Arms A
G B
Features: E
• Lightweight aluminum construction
• Locking tapered connection for F
360 deg. arm positioning
D
C

C1
Part Used with Weight
Number Model/series A B C C1 D E F G [lbs] kg
[1.74] [1.11] [0.37] [0.33] [0.25] [0.62] [0.32] [0.03]
801528 8015/8016 #10-32
44.2 28.2 9.4 8.3 6.4 15.7 8.1 0.01
[2.87] [2.24] [0.37] [0.33] [0.25] [0.62] [0.32] [0.05]
801529 8015/8016 #10-32
72.9 56.9 9.4 8.3 6.4 15.7 8.1 0.02
8215/8216 [2.75] [2.00] [0.75] [0.57] [0.38] [0.75] [0.38] [0.04]
821512 3/8-16
8415/8416 69.9 50.8 19.1 14.5 9.5 19.1 9.5 0.02
[3.75] [3.00] [0.75] [0.57] [0.38] [0.75] [0.38] [0.05]
821513 8215/8216 3/8-16
95.3 76.2 19.1 14.5 9.5 19.1 9.5 0.02
Clamping Arm Adapters

Features:
• For attaching custom 8MA_221_1
made clamp arms
• 360° rotatable arm
• Aluminum construction

Part Used with Weight
Number Model/series A B C D E E1 F [lbs] kg
[1.37] [1.00] #10-32 [0.03]
801532 8015/8016 [0.39] [0.25] [0.62] --
34,8 25,4 (2x) 0,014
[1.50] [1.06] 1/4-20 [0.05]
821556 8215/8216 [0.75] [0.37] [0.75] --
38,1 26,9 (2x) 0,020
Mounting Flanges H

Features: Ø E
• For use with Threaded Body
Pneumatic Swing Clamps
• Variable height adjustment A
• For recessed mounting
B
Ø F
D
C
Part Used with
Number Model/series A B C D E F H
[1.38] [0.69] [1.08] [0.54] [0.20]
801553 8015/8016 1 1/8-16
35 17,5 27,4 13,7 5,1
[2.50] [1.25] [2.12] [1.06] [0.50]
821553 8215/8216 2 1/4-12
63,5 31,8 53,8 26,9 [0.28] 12.7
[2.00] [1.00] [1.60] [0.80] 7,1
841550 8415/8416 1 3/4-12
50,8 25,4 40,6 20,3
MC-PSC-31 Dimensions and technical information are subject to change without notice
