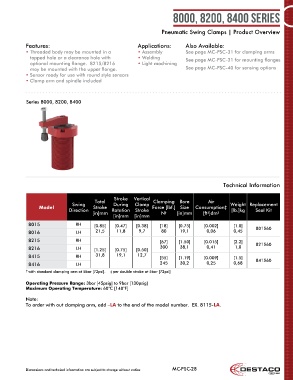

8000, 8200, 8400 series

Pneumatic Swing Clamps | Product Overview

Features: Applications: Also Available:
• Threaded body may be mounted in a • Assembly See page MC-PSC-31 for clamping arms
tapped hole or a clearance hole with • Welding See page MC-PSC-31 for mounting flanges
optional mounting flange. 8215/8216 • Light machining
may be mounted with the upper flange. See page MC-PSC-40 for sensing options
• Sensor ready for use with round style sensors
• Clamp arm and spindle included

Series 8000, 8200, 8400

Technical Information

Stroke Vertical
Total Clamping Bore Air
Swing During Clamp Weight Replacement
Model Stroke Force [lbf.] Size Consumption‡
Direction Rotation Stroke [lb.]kg Seal Kit
[in]mm N [in]mm [ft ]dm 3
3
†
[in]mm [in]mm
8015 RH [0.85] [0.47] [0.38] [18] [0.75] [0.002] [1.0] 801560
8016 LH 21,5 11,8 9,7 80 19,1 0,06 0,45
8215 RH [67] [1.50] [0.015] [2.2]
8216 LH [1.25] [0.75] [0.50] 300 38,1 0,41 1,0 821560
8415 RH 31,8 19,1 12,7 [55] [1.19] [0.009] [1.5] 841560
8416 LH 245 30,2 0,25 0,68
† with standard clamping arm at 5bar [72psi]. ‡ per double stroke at 5bar [72psi]

Operating Pressure Range: 3bar [45psig] to 9bar [130psig]
Maximum Operating Temperature: 60°C [140°F]

Note:
To order with out clamping arm, add –LA to the end of the model number. EX. 8115-LA.

Dimensions and technical information are subject to change without notice MC-PSC-28
