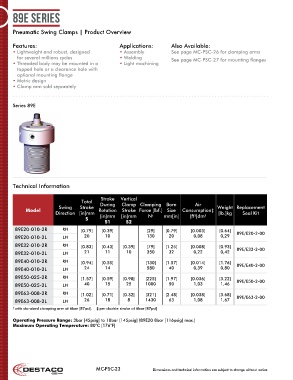

Page 232 - Destaco - Clamping Technology

89E series

Pneumatic Swing Clamps | Product Overview

Features: Applications: Also Available:
• Lightweight and robust, designed • Assembly See page MC-PSC-26 for clamping arms
for several millions cycles • Welding See page MC-PSC-27 for mounting flanges
• Threaded body may be mounted in a • Light machining
tapped hole or a clearance hole with
optional mounting flange
• Metric design
• Clamp arm sold separately

Series 89E

Technical Information

Stroke Vertical
Total
Swing Stroke During Clamp Clamping Bore Air Weight Replacement
Model Rotation Stroke Force [lbf.] Size Consumption‡
Direction [in]mm [in]mm [in]mm N mm[in] [ft ]dm 3 [lb.]kg Seal Kit
†
3
S
S1 S2
89E20-010-2R RH [0.79] [0.39] [29] [0.79] [0.003] [0.64]
89E20-010-2L LH 20 10 130 20 0,08 0,29 89E/E20-2-00
89E32-010-2R RH [0.83] [0.43] [0.39] [79] [1.25] [0.008] [0.93] 89E/E32-2-00
89E32-010-2L LH 21 11 10 350 32 0,22 0,42
89E40-010-2R RH [0.94] [0.55] [130] [1.57] [0.014] [1.76] 89E/E40-2-00
89E40-010-2L LH 24 14 580 40 0,39 0,80

89E50-025-2R RH [1.57] [0.59] [0.98] [225] [1.97] [0.036] [3.22]
89E50-025-2L LH 40 15 25 1000 50 1,03 1,46 89E/E50-2-00
89E63-008-2R RH [1.02] [0.71] [0.32] [321] [2.48] [0.038] [3.68] 89E/E63-2-00
89E63-008-2L LH 26 18 8 1430 63 1,08 1,67
† with standard clamping arm at 6bar [87psi]. ‡ per double stroke at 6bar [87psi]

Operating Pressure Range: 3bar [45psig] to 10bar [145psig] (89E20 8bar [116psig] max.)
Maximum Operating Temperature: 80°C [176°F]

MC-PSC-23 Dimensions and technical information are subject to change without notice
