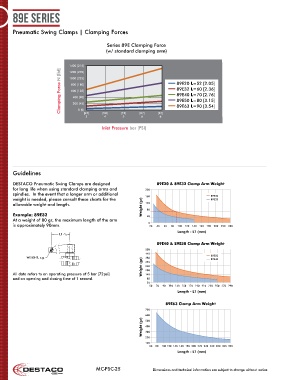

Page 234 - Destaco - Clamping Technology

89e series

Pneumatic Swing Clamps | Clamping Forces

Series 89E Clamping Force
(w/ standard clamping arm)

1400 [215]
Clamping Force N [lbf] 800 [180] 89E20 L=52 [2.05]
1200 [270]
1000 [225]
89E32 L=60 [2.36]
600 [135]
89E40 L=70 [2.76]
400 [90]
89E50 L=80 [3.15]
200 [45]
0 [0]
[45]
6
6
5
3 [58] [73] [87] [87] 89E63 L=90 [3.54]
4
Inlet Pressure bar [PSI]

Guidelines

DESTACO Pneumatic Swing Clamps are designed 89E20 & 89E32 Clamp Arm Weight
for long life when using standard clamping arms and 200
spindles. In the event that a longer arm or additional 160 89E30
weight is needed, please consult these charts for the 89E20
allowable weight and length. Weight (gr) 120
Example: 89E32 80
40
At a weight of 80 gr, the maximum length of the arm
is approximately 90mm. 0 20 40 60 80 100 120 140 160 180 200 220 240
Length - L1 (mm)
L1
89E40 & 89E50 Clamp Arm Weight
500
440
WEIGHT, c.g. 380 89E50
Weight (gr) 260
89E40
320
200
All data refers to an operating pressure of 5 bar [72psi] 140
and an opening and closing time of 1 second. 80
20
50 70 90 110 130 150 170 190 210 230 250 270 290
Length - L1 (mm)
89E63 Clamp Arm Weight
700
600
Weight (gr) 400
500
300
200
100
60 80 100 120 140 160 180 200 220 240 260 280 300 320
Length - L1 (mm)

MC-PSC-25 Dimensions and technical information are subject to change without notice
