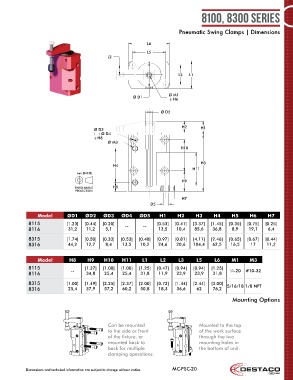

Page 229 - Destaco - Clamping Technology

8315_C
8100, 8300 series

Pneumatic Swing Clamps | Dimensions

L6
L5
L2

L3 L1

Ø D1 Ø M1
H6

Ø D2

H2 H1
Ø D3
Ø D4
H8
Ø M3
H10

H3
H4
H11
mm [INCH] mm [INCH]
H9
H5
THIRD ANGLE FIRST ANGLE
PROJECTION PROJECTION
H7
D5

Model ØD1 ØD2 ØD3 ØD4 ØD5 H1 H2 H3 H4 H5 H6 H7

8115 [1.23] [0.44] [0.20] -- -- [0.53] [0.41] [3.37] [1.45] [0.35] [0.75] [0.25]
8116 31,2 11,2 5,1 13,5 10,4 85,6 36,8 8,9 19,1 6,4

8315 [1.74] [0.50] [0.33] [0.53] [0.40] [0.97] [0.81] [4.11] [2.46] [0.65] [0.67] [0.44]
8316 44,2 12,7 8,4 13,5 10,2 24,6 20,6 104,4 62,5 16,5 17 11,2

Model H8 H9 H10 H11 L1 L2 L3 L5 L6 M1 M3
8115 -- [1.37] [1.00] [1.00] [1.25] [0.47] [0.94] [0.94] [1.25] ¼-20 #10-32
8116 34,8 25,4 25,4 31,8 11,9 23,9 23,9 31,8

8315 [1.00] [1.49] [2.25] [2.37] [2.00] [0.72] [1.44] [2.44] [3.00] 5/16/18 1/8 NPT
8316 25,4 37,9 57,2 60,2 50,8 18,3 36,6 62 76,2

Mounting Options

Can be mounted Mounted to the top
to the side or front of the work surface
of the fixture, or through the two
mounted back to mounting holes in
back for multiple the bottom of unit.
clamping operations.

Dimensions and technical information are subject to change without notice MC-PSC-20
