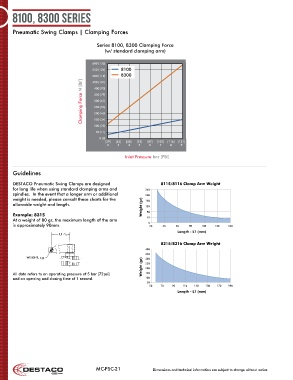

8100, 8300 series

Pneumatic Swing Clamps | Clamping Forces

Series 8100, 8300 Clamping Force
(w/ standard clamping arm)

600 [135]
550 [124] 8100
500 [112] 8300
Clamping Force N [lbf] 350 [79]
450 [101]
400 [90]

300 [67]
250 [56]
200 [45]
150 [34]
100 [22]
50 [11]
0 [0]
[29] [45] [58] [73] [87] [102] [116] [131]
2 3 4 5 6 7 8 9
Inlet Pressure bar [PSI]

Guidelines

DESTACO Pneumatic Swing Clamps are designed 8115/8116 Clamp Arm Weight
for long life when using standard clamping arms and 240
spindles. In the event that a longer arm or additional 200
weight is needed, please consult these charts for the 160
allowable weight and length. Weight (gr) 120
Example: 8315 80
At a weight of 80 gr, the maximum length of the arm 40
is approximately 90mm. 0 20 40 60 80 100 120 140
Length - L1 (mm)
L1
8315/8316 Clamp Arm Weight
400
350
WEIGHT, c.g. 300
Weight (gr) 250
200
All data refers to an operating pressure of 5 bar [72psi] 150
and an opening and closing time of 1 second. 100
50
50 70 90 110 130 150 170 190
Length - L1 (mm)

MC-PSC-21 Dimensions and technical information are subject to change without notice
