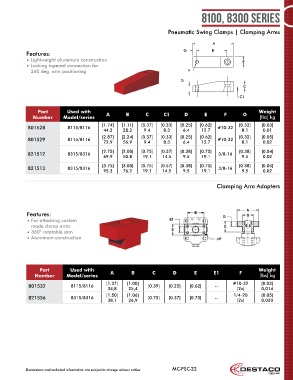

8100, 8300 series

Pneumatic Swing Clamps | Clamping Arms

A
G B
Features:
• Lightweight aluminum construction E
• Locking tapered connection for
360 deg. arm positioning F
D
C

C1

Part Used with Weight
Number Model/series A B C C1 D E F G [lbs] kg
[1.74] [1.11] [0.37] [0.33] [0.25] [0.62] [0.32] [0.03]
801528 8115/8116 #10-32
44.2 28.2 9.4 8.3 6.4 15.7 8.1 0.01
[2.87] [2.24] [0.37] [0.33] [0.25] [0.62] [0.32] [0.05]
801529 8115/8116 #10-32
72.9 56.9 9.4 8.3 6.4 15.7 8.1 0.02
[2.75] [2.00] [0.75] [0.57] [0.38] [0.75] [0.38] [0.04]
821512 8315/8316 3/8-16
69.9 50.8 19.1 14.5 9.5 19.1 9.5 0.02
[3.75] [3.00] [0.75] [0.57] [0.38] [0.75] [0.38] [0.05]
821513 8315/8316 3/8-16
95.3 76.2 19.1 14.5 9.5 19.1 9.5 0.02

Clamping Arm Adapters

Features:
• For attaching custom
made clamp arms
• 360° rotatable arm
• Aluminum construction

Part Used with Weight
Number Model/series A B C D E E1 F [lbs] kg
[1.37] [1.00] #10-32 [0.03]
801532 8115/8116 [0.39] [0.25] [0.62] --
34,8 25,4 (2x) 0,014
[1.50] [1.06] 1/4-20 [0.05]
821556 8315/8316 [0.75] [0.37] [0.75] --
38,1 26,9 (2x) 0,020

Dimensions and technical information are subject to change without notice MC-PSC-22
