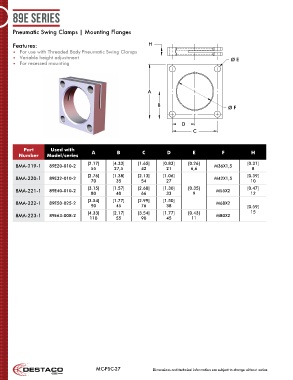

Page 236 - Destaco - Clamping Technology

89e series 8MA_221_1

Pneumatic Swing Clamps | Mounting Flanges

Features: H
• For use with Threaded Body Pneumatic Swing Clamps
• Variable height adjustment Ø E
• For recessed mounting

A

B Ø F

D
C

Part Used with
Number Model/series A B C D E F H
[2.17] [4.33] [1.65] [0.83] [0.26] [0.31]
8MA-219-1 89E20-010-2 M36X1,5
55 27,5 42 21 6,6 8
[2.76] [1.38] [2.13] [1.06] [0.39]
8MA-220-1 89E32-010-2 M42X1,5
70 35 54 27 10
8MA-221-1 89E40-010-2 [3.15] [1.57] [2.60] [1.30] [0.35] M55X2 [0.47]
80 40 66 33 9 12
[3.54] [1.77] [2.99] [1.50]
8MA-222-1 89E50-025-2 M68X2
90 45 76 38 [0.59]
[4.33] [2.17] [3.54] [1.77] [0.43] 15
8MA-223-1 89E63-008-2 M80X2
110 55 90 45 11

MC-PSC-27 Dimensions and technical information are subject to change without notice
