89e series
89E40_010_1L

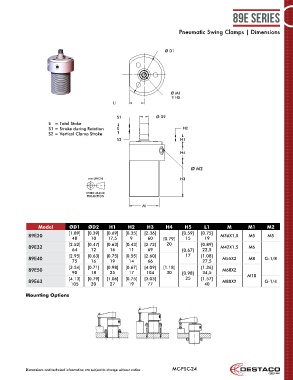

Pneumatic Swing Clamps | Dimensions
Ø D1
Ø M1
H5
L1
S1 Ø D2
S = Total Stoke
S1 = Stroke during Rotation S H2
S2 = Vertical Clamp Stroke
S2 H1
H4
Ø M2
mm [INCH] mm [INCH] H3
THIRD ANGLE FIRST ANGLE
PROJECTION PROJECTION
M
Model ØD1 ØD2 H1 H2 H3 H4 H5 L1 M M1 M2
[1.89] [0.39] [0.69] [0.35] [2.36] [0.59] [0.75]
89E20 M36X1,5 M5 M5
48 10 17,5 9 60 [0.79] 15 19
[2.52] [0.47] [0.63] [0.43] [2.72] 20 [0.89]
89E32 M42X1,5 M6
64 12 16 11 69 [0.67] 22,5
[2.95] [0.63] [0.75] [0.55] [2.60] 17 [1.08]
89E40 M55X2 M8 G-1/8
75 16 19 14 66 27,5
89E50 [3.54] [0.71] [0.98] [0.67] [4.09] [1.18] [1.36] M68X2
90 18 25 17 104 30 [0.98] 34,5
[4.13] [0.79] [1.06] [0.75] [3.03] 25 [1.57] M10
89E63 M80X2 G-1/4
105 20 27 19 77 40
