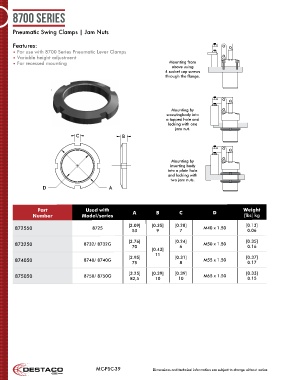

Page 248 - Destaco - Clamping Technology

8700 series

Pneumatic Swing Clamps | Jam Nuts

Features:
• For use with 8700 Series Pneumatic Lever Clamps
• Variable height adjustment
• For recessed mounting Mounting from
above using
4 socket cap screws
through the flange.

Mounting by
screwingbody into
a tapped hole and
locking with one
jam nut.
C B

Mounting by
inserting body
into a plain hole
and locking with
two jam nuts.
D A

Part Used with Weight
Number Model/series A B C D [lbs] kg
[2.09] [0.35] [0.28] [0.13]
872550 8725 M40 x 1.50
53 9 7 0.06
[2.76] [0.24] [0.35]
873250 8732/ 8732G M50 x 1.50
70 6 0.16
[0.43]
11
[2.95] [0.31] [0.37]
874050 8740/ 8740G 75 8 M55 x 1.50 0.17
[3.25] [0.39] [0.39] [0.33]
875050 8750/ 8750G M65 x 1.50
82,5 10 10 0.15

MC-PSC-39 Dimensions and technical information are subject to change without notice
