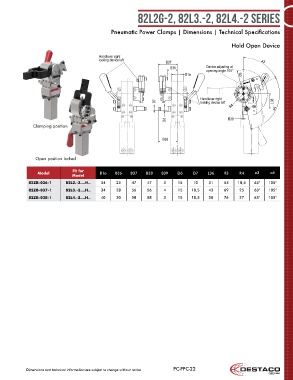

P. 285
82L2G-2, 82L3.-2, 82L4.-2 Series
Pneumatic Power Clamps | Dimensions | Technical Specifications
Hold Open Device
Handlever right
locking device left B37 a3
B36 Device adjusting at
opening angle 105°
B1a
R3
D7 Handlever right R4 L36 a4
locking device left
D6 B39
Clamping position
B38
Open position locked
Fit for
Model B1a B36 B37 B38 B39 D6 D7 L36 R3 R4 a3 a4
Model
82ZB-036-1 82L2.-2....H.. 34 25 47 47 3 15 10 31 53 18,5 63° 105°
82ZB-037-1 82L3.-2....H.. 34 28 56 56 4 15 10,5 43 69 25 63° 105°
82ZB-038-1 82L4.-2....H.. 40 30 58 58 3 15 10,5 50 76 27 63° 105°
Dimensions and technical information are subject to change without notice PC-PPC-22
