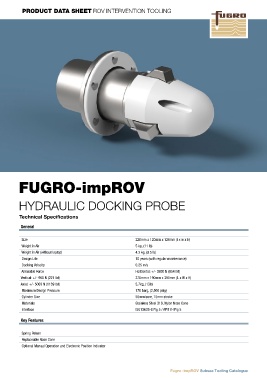

PRODUCT DATA SHEET ROV INTERVENTION TOOLING
FUGRO-impROV
HYDRAULIC DOCKING PROBE
Technical Specifications
General
Size 220mm x 120mm x 120mm (l x w x h)
Weight in Air 5 kg, (11 lb)
Weight in Air (without laptop) 4.3 kg, (9.5 lb)
Design Life 10 years (with regular maintenance)
Docking Velocity 0.25 m/s
Allowable Force Horizontal: +/- 3800 N (854 lbf)
Vertical: +/- 980 N (221 lbf) 370mm x 190mm x 395mm (L x W x H)
Axial: +/- 5060 N (1139 lbf) 5.7kg, (13lb)
Maximum Design Pressure 170 barg, (2,500 psig)
Cylinder Size 55mm bore, 15mm stroke
Materials Stainless Steel 316, Nylon Nose Cone
Interface ISO13628-8 Fig 5 / API17H Fig 5
Key Features
Spring Return
Replaceable Nose Cone
Optional Manual Operation and Electronic Position Indicator
