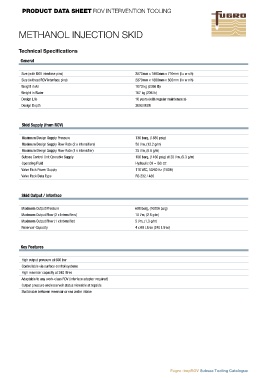

PRODUCT DATA SHEET ROV INTERVENTION TOOLING

METHANOL INJECTION SKID

Technical Specifications
General

Size (with ROV interface pins) 2870mm x 1800mm x 710mm (l x w x h)
Size (without ROV interface pins) 2870mm x 1800mm x 602mm (l x w x h)
Weight in Air 1073 kg (2366 lb)
Weight in Water 107 kg (236 lb)
Design Life 10 years (with regular maintenance)
Design Depth 3000 MSW

Skid Supply (from ROV)
Maximum Design Supply Pressure 130 barg, (1885 psig)
Maximum Design Supply Flow Rate (2 x Intensifiers) 50 l/m, (13.2 g/m)
Maximum Design Supply Flow Rate (1 x Intensifier) 25 l/m, (6.6 g/m)
Subsea Control Unit Operable Supply 100 barg, (1450 psig) at 20 l/m, (5.3 g/m)
Operating Fluid Hydraulic Oil – ISO 32
Valve Pack Power Supply 110 VAC, 50/60 Hz (150W)
Valve Pack Data Type RS 232 / 485

Skid Output / Interface
Maximum Output Pressure 690 barg, (10000 psig)
Maximum Output Flow (2 x Intensifiers) 10 l/m, (2.6 g/m)
Maximum Output Flow (1 x Intensifier) 5 l/m, (1.3 g/m)
Reservoir Capacity 4 x 60 Litres (240 Litres)

Key Features
High output pressure at 690 bar
Controllable via surface control systems
High reservoir capacity at 240 litres
Adaptable to any work-class ROV (interface adaptor required)
Output pressure and reservoir status viewable at topside
Switchable between reservoir or sea water intake
