MATLAB , SIMULINK , STATEFLOW, AND AUTO-CODE GENERATION 859

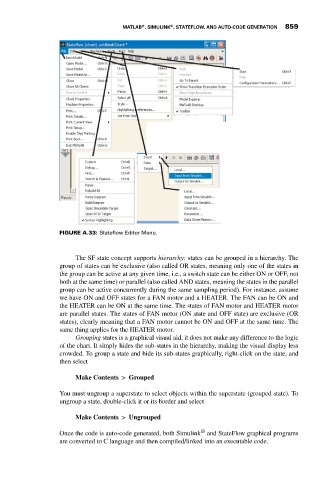

FIGURE A.33: Stateflow Editor Menu.

The SF state concept supports hierarchy: states can be grouped in a hierarchy. The
group of states can be exclusive (also called OR states, meaning only one of the states in
the group can be active at any given time, i.e., a switch state can be either ON or OFF, not
both at the same time) or parallel (also called AND states, meaning the states in the parallel
group can be active concurrently during the same sampling period). For instance, assume
we have ON and OFF states for a FAN motor and a HEATER. The FAN can be ON and
the HEATER can be ON at the same time. The states of FAN motor and HEATER motor
are parallel states. The states of FAN motor (ON state and OFF state) are exclusive (OR
states), clearly meaning that a FAN motor cannot be ON and OFF at the same time. The
same thing applies for the HEATER motor.
Grouping states is a graphical visual aid, it does not make any difference to the logic
of the chart. It simply hides the sub-states in the hierarchy, making the visual display less
crowded. To group a state and hide its sub-states graphically, right-click on the state, and
then select

Make Contents > Grouped

You must ungroup a superstate to select objects within the superstate (grouped state). To
ungroup a state, double-click it or its border and select

Make Contents > Ungrouped

®
Once the code is auto-code generated, both Simulink and StateFlow graphical programs
are converted to C language and then compiled/linked into an executable code.
