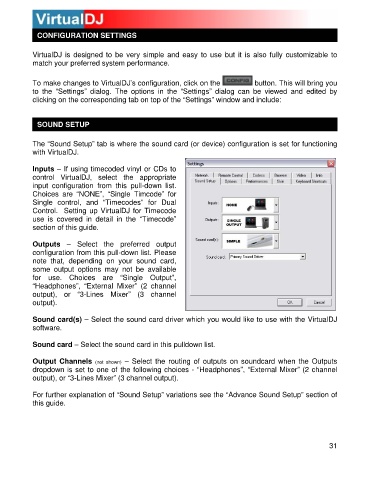

CONFIGURATION SETTINGS

VirtualDJ is designed to be very simple and easy to use but it is also fully customizable to
match your preferred system performance.

To make changes to VirtualDJ’s configuration, click on the button. This will bring you
to the “Settings” dialog. The options in the “Settings” dialog can be viewed and edited by
clicking on the corresponding tab on top of the “Settings” window and include:

SOUND SETUP

The “Sound S etup” tab is w here the sound card (or device) configuration is set for functioning
w ith VirtualDJ.

Inputs – If using timecoded vinyl or CDs to
c ontrol VirtualDJ, select the appropriate
input configuration from this pull-down list.
Choices are “NONE”, “Single Timcode” for
Single control, and “Timecodes” for Dual
C ontrol. Setting up VirtualDJ for Timecode
u se is covered in detail in the “Timecode”
s ection of this guide.

O utputs – Select the preferred output
c onfiguration from this pull-down list. Please
n ote that, depending on your sound card,
s ome output options may not be available
for use. Choices are “Single Output”,
“H eadphones”, “External Mixer” (2 channel
output), or “3-Lines Mixer” (3 channel
output).

Sound card(s) – Select the sound card driver which yo u would like to use with the VirtualDJ
software.

Sound card – Select the sound card in this pulldown list.

Output Channels (not shown) – Select the routing of outp uts on soundcard when the Outputs
dropdown is set to one of the following choices - “Headphones”, “External Mixer” (2 channel
o utput), or “3-Lines Mixer” (3 channel output).

For further explanation of “Sound Setup” variations see the “Advance Sound Setup” section of
this guide.

31
