Viewing Measurement Data

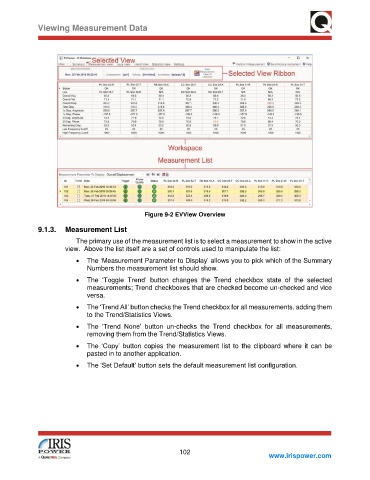

Figure 9-2 EVView Overview
9.1.3. Measurement List

The primary use of the measurement list is to select a measurement to show in the active
view. Above the list itself are a set of controls used to manipulate the list:

• The ‘Measurement Parameter to Display’ allows you to pick which of the Summary
Numbers the measurement list should show.

• The ‘Toggle Trend’ button changes the Trend checkbox state of the selected
measurements; Trend checkboxes that are checked become un-checked and vice
versa.
• The ‘Trend All’ button checks the Trend checkbox for all measurements, adding them
to the Trend/Statistics Views.
• The ‘Trend None’ button un-checks the Trend checkbox for all measurements,
removing them from the Trend/Statistics Views.
• The ‘Copy’ button copies the measurement list to the clipboard where it can be
pasted in to another application.
• The ‘Set Default’ button sets the default measurement list configuration.
