Viewing Measurement Data

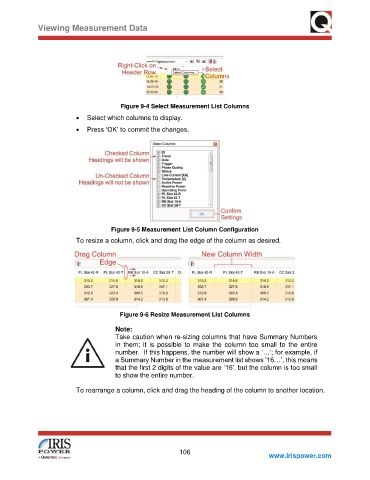

Figure 9-4 Select Measurement List Columns

• Select which columns to display.
• Press ‘OK’ to commit the changes.

Figure 9-5 Measurement List Column Configuration
To resize a column, click and drag the edge of the column as desired.

Figure 9-6 Resize Measurement List Columns

Note:
Take caution when re-sizing columns that have Summary Numbers
in them; it is possible to make the column too small to the entire
number. If this happens, the number will show a ‘…’; for example, if
a Summary Number in the measurement list shows ’16…’, this means
that the first 2 digits of the value are ‘16’, but the column is too small
to show the entire number.

To rearrange a column, click and drag the heading of the column to another location.
