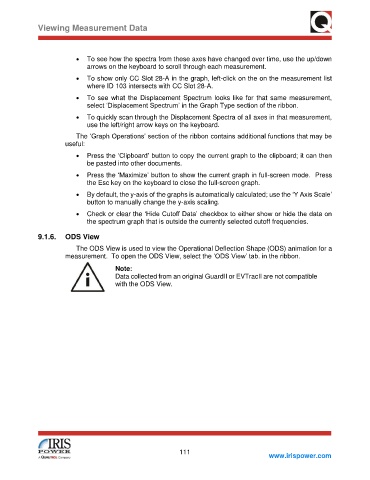

Viewing Measurement Data

• To see how the spectra from these axes have changed over time, use the up/down
arrows on the keyboard to scroll through each measurement.
• To show only CC Slot 28-A in the graph, left-click on the on the measurement list
where ID 103 intersects with CC Slot 28-A.
• To see what the Displacement Spectrum looks like for that same measurement,
select ‘Displacement Spectrum’ in the Graph Type section of the ribbon.
• To quickly scan through the Displacement Spectra of all axes in that measurement,
use the left/right arrow keys on the keyboard.
The ‘Graph Operations’ section of the ribbon contains additional functions that may be
useful:
• Press the ‘Clipboard’ button to copy the current graph to the clipboard; it can then
be pasted into other documents.
• Press the ‘Maximize’ button to show the current graph in full-screen mode. Press
the Esc key on the keyboard to close the full-screen graph.
• By default, the y-axis of the graphs is automatically calculated; use the ‘Y Axis Scale’
button to manually change the y-axis scaling.
• Check or clear the ‘Hide Cutoff Data’ checkbox to either show or hide the data on
the spectrum graph that is outside the currently selected cutoff frequencies.

9.1.6. ODS View
The ODS View is used to view the Operational Deflection Shape (ODS) animation for a
measurement. To open the ODS View, select the ‘ODS View’ tab. in the ribbon.

Note:
Data collected from an original GuardII or EVTracII are not compatible
with the ODS View.
