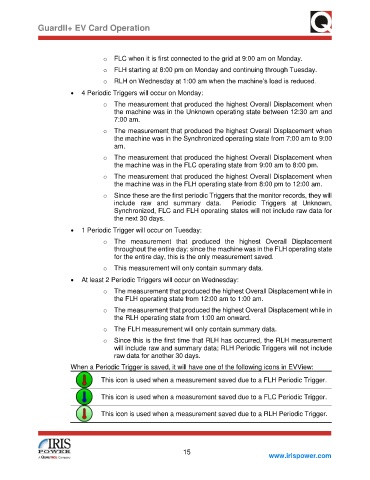

GuardII+ EV Card Operation

o FLC when it is first connected to the grid at 9:00 am on Monday.

o FLH starting at 8:00 pm on Monday and continuing through Tuesday.
o RLH on Wednesday at 1:00 am when the machine’s load is reduced.
• 4 Periodic Triggers will occur on Monday:

o The measurement that produced the highest Overall Displacement when
the machine was in the Unknown operating state between 12:30 am and
7:00 am.
o The measurement that produced the highest Overall Displacement when
the machine was in the Synchronized operating state from 7:00 am to 9:00
am.

o The measurement that produced the highest Overall Displacement when
the machine was in the FLC operating state from 9:00 am to 8:00 pm.

o The measurement that produced the highest Overall Displacement when
the machine was in the FLH operating state from 8:00 pm to 12:00 am.

o Since these are the first periodic Triggers that the monitor records, they will
include raw and summary data. Periodic Triggers at Unknown,
Synchronized, FLC and FLH operating states will not include raw data for
the next 30 days.

• 1 Periodic Trigger will occur on Tuesday:
o The measurement that produced the highest Overall Displacement
throughout the entire day; since the machine was in the FLH operating state
for the entire day, this is the only measurement saved.
o This measurement will only contain summary data.

• At least 2 Periodic Triggers will occur on Wednesday:
o The measurement that produced the highest Overall Displacement while in
the FLH operating state from 12:00 am to 1:00 am.
o The measurement that produced the highest Overall Displacement while in
the RLH operating state from 1:00 am onward.
o The FLH measurement will only contain summary data.
o Since this is the first time that RLH has occurred, the RLH measurement
will include raw and summary data; RLH Periodic Triggers will not include
raw data for another 30 days.
When a Periodic Trigger is saved, it will have one of the following icons in EVView:

This icon is used when a measurement saved due to a FLH Periodic Trigger.

This icon is used when a measurement saved due to a FLC Periodic Trigger.

This icon is used when a measurement saved due to a RLH Periodic Trigger.
