Installation

5.5. Enclosure Cable Entry

Before installing the EV card, a new cable entry hole may need to be drilled into the
GuardII+ enclosure for the EV sensor cables. If the conduit is already run to the monitor, then
skip to Section 5.6. If new holes are required, refer to the GuardII+ Series 4208 Platform User
Manual for instructions on drilling these holes.

5.6. EV Card Installation

If the GuardII+ was purchased with the EV card installed, skip to Section 5.7.

5.6.1. Existing Flux or SM Card
In some cases, the GuardII+ may have an existing Flux or shaft monitoring card (SM), and
the monitor is being upgraded to include EV. In this case, the existing connections to the card
need to be disconnected before removing the card so the new one with, all three technologies
can be installed.

Note:
Be sure to record the current connections before disconnecting them, so
they can be restored after installing the new card.

Disconnect any existing connections, and then loosen the thumbscrews holding the card
in place. Slide the card towards the bottom of the enclosure until it disconnects and can be
removed; this is no longer required.

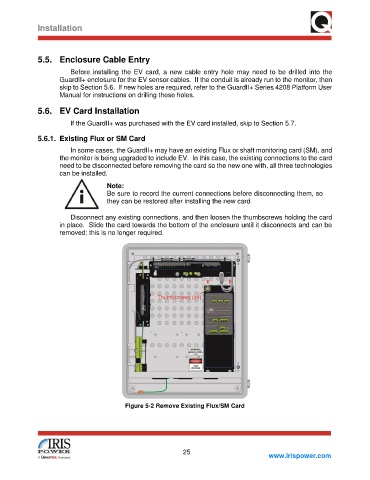

Figure 5-2 Remove Existing Flux/SM Card
