Installation
5.6.2. No Existing Flux or SM Card
Before installing the EV card, the protective cover on the GuardII+ Series 4208 Platform
EV card connectors need to be removed. Loosen the thumbscrews holding the cover in place
and remove the cover from the enclosure; this is no longer required.

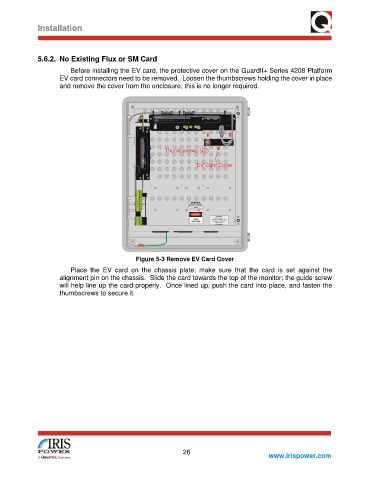

Figure 5-3 Remove EV Card Cover
Place the EV card on the chassis plate; make sure that the card is set against the
alignment pin on the chassis. Slide the card towards the top of the monitor; the guide screw
will help line up the card properly. Once lined up, push the card into place, and fasten the
thumbscrews to secure it.
