P. 37

Installation




                                         EOD Connection       EV Card Connection
                                               1S01               EV1 Positive
                                               1G01               EV1 Negative
                                               1S02               EV2 Positive
                                               1G02               EV2 Negative
                                               1S03               EV5 Positive
                                               1G03               EV5 Negative

              5.8.2.  Shaft Trigger Input
                        Some machines may have a Shaft Trigger installed.  To connect the Shaft Trigger signal
                     to the monitor, make the connections shown below.

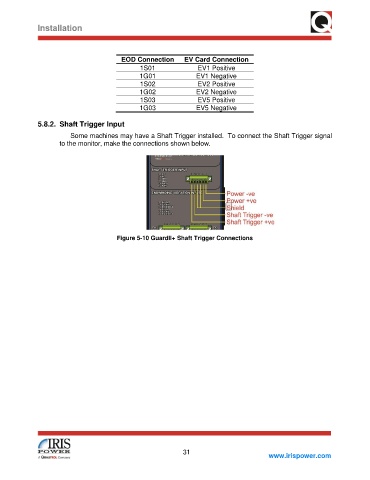

                                        Figure 5-10 GuardII+ Shaft Trigger Connections








































                                                              31
