Installation
5.7. EOD Box Check
When connecting the EV card to an EOD box, it is a good idea to verify that the EOD’s are
properly calibrated. Refer to the EOD Box Manual and Installation Guide for details.
5.8. EV Sensor Connections
The GuardII+ EV sensor inputs are connected to the terminal blocks inside the EOD
box(es) with twisted pair jumper cables; a set of cables are provided in the EV sensor
installation kit. The number of EODs inside the EOD box will vary from site to site, and multiple
EOD boxes may be required depending on the physical limitations of the installation and the
number of EV sensors; a single EOD box can support up to 17 sensors.

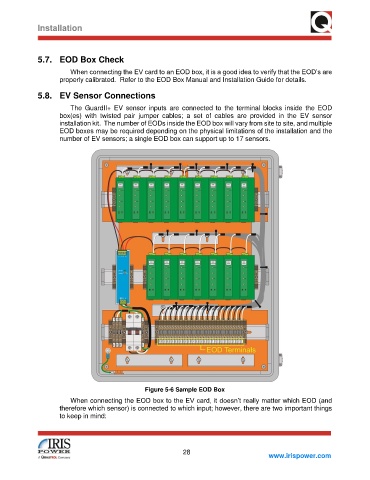

Figure 5-6 Sample EOD Box
When connecting the EOD box to the EV card, it doesn’t really matter which EOD (and
therefore which sensor) is connected to which input; however, there are two important things
to keep in mind:
