User Instructions
Rating Asset Editor Page
Rotation direction Mechanical Ratings
Number of poles Mechanical Ratings
Pole numbering direction Mechanical Ratings
Number of stator slots Mechanical Ratings
Slot numbering direction Mechanical Ratings
Top-center slot number Mechanical Ratings
The application assumes that the rotation direction, pole numbering direction and slot
numbering direction are clockwise when viewed from the connection end of the machine. To
set a counter-clockwise rotation or numbering direction, set the correct checkbox on the
Mechanical Ratings page.

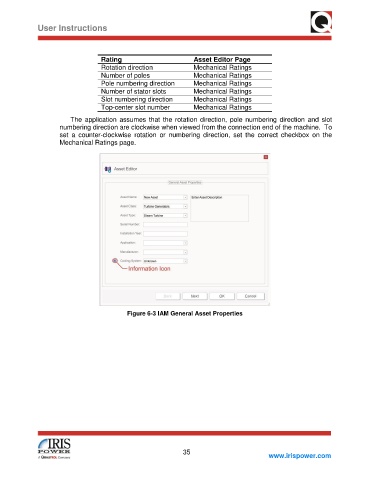

Figure 6-3 IAM General Asset Properties
