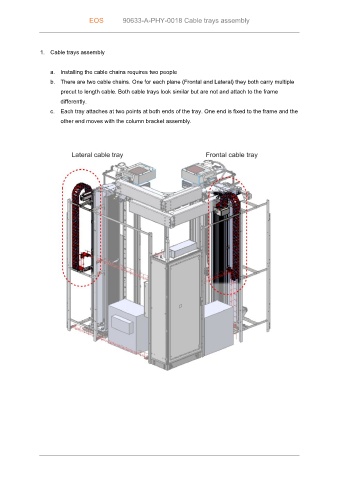

EOS 90633-A-PHY-0018 Cable trays assembly
1. Cable trays assembly
a. Installing the cable chains requires two people
b. There are two cable chains. One for each plane (Frontal and Lateral) they both carry multiple
precut to length cable. Both cable trays look similar but are not and attach to the frame
differently.
c. Each tray attaches at two points at both ends of the tray. One end is fixed to the frame and the
other end moves with the column bracket assembly.
