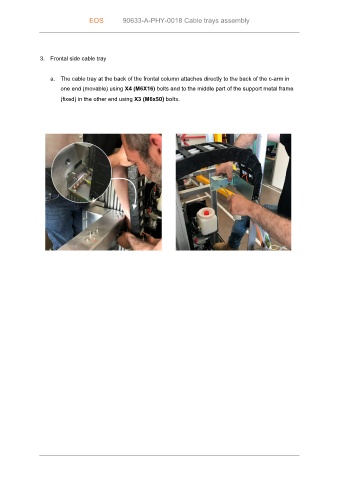

EOS 90633-A-PHY-0018 Cable trays assembly
3. Frontal side cable tray
a. The cable tray at the back of the frontal column attaches directly to the back of the c-arm in
one end (movable) using X4 (M6X16) bolts and to the middle part of the support metal frame
(fixed) in the other end using X3 (M6x50) bolts.
