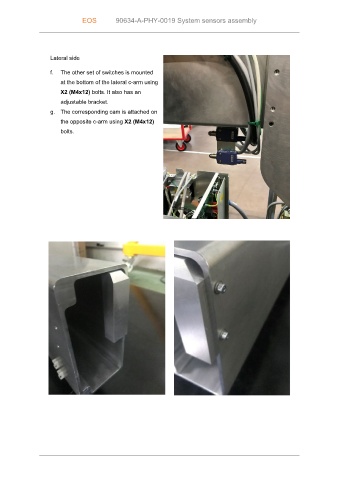

EOS 90634-A-PHY-0019 System sensors assembly
Lateral side
f. The other set of switches is mounted
at the bottom of the lateral c-arm using
X2 (M4x12) bolts. It also has an
adjustable bracket.
g. The corresponding cam is attached on
the opposite c-arm using X2 (M4x12)
bolts.
