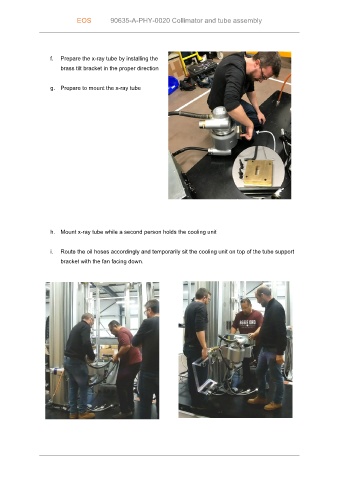

EOS 90635-A-PHY-0020 Collimator and tube assembly

f. Prepare the x-ray tube by installing the
brass tilt bracket in the proper direction

g. Prepare to mount the x-ray tube

h. Mount x-ray tube while a second person holds the cooling unit

i. Route the oil hoses accordingly and temporarily sit the cooling unit on top of the tube support
bracket with the fan facing down.
