EOS 90635-A-PHY-0020 Collimator and tube assembly

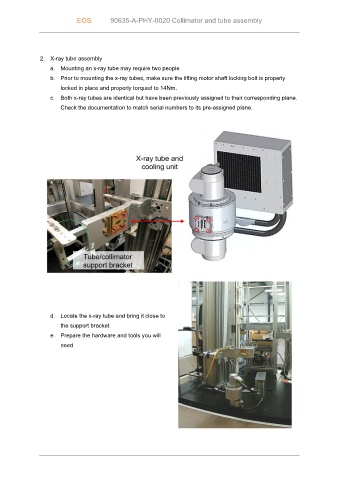

2. X-ray tube assembly
a. Mounting an x-ray tube may require two people
b. Prior to mounting the x-ray tubes, make sure the lifting motor shaft locking bolt is properly
locked in place and properly torqued to 14Nm.

c. Both x-ray tubes are identical but have been previously assigned to their corresponding plane.
Check the documentation to match serial numbers to its pre-assigned plane.

d. Locate the x-ray tube and bring it close to
the support bracket

e. Prepare the hardware and tools you will
need
