EOS 90634-A-PHY-0019 System sensors assembly

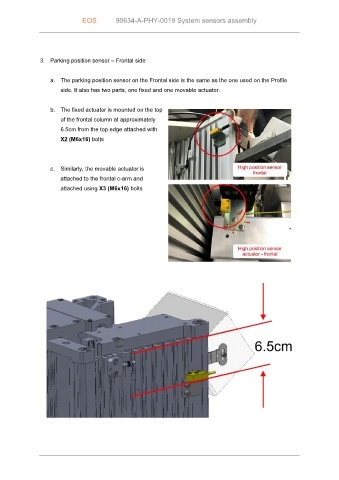

3. Parking position sensor – Frontal side

a. The parking position sensor on the Frontal side is the same as the one used on the Profile
side. It also has two parts, one fixed and one movable actuator.

b. The fixed actuator is mounted on the top
of the frontal column at approximately

6.5cm from the top edge attached with
X2 (M6x16) bolts

c. Similarly, the movable actuator is
attached to the frontal c-arm and
attached using X3 (M6x16) bolts
